VERO

Compact, economical, super-wide mobile camera @ 1.3/2.2 megapixels

VERTEX

1.3 megapixel camera specifically designed for small spaces

CREATE MY SYSTEM

Introducing Vero

Introducing Vero

Performance

Compatible

Vero is compatible with Vantage, Vue, T-series and Bonita

Performance

Status Lights

Keep up-to-date with your
System Status

Performance

Accelerometer

Enables camera selection
for simple system set-up and monitors camera position in real time

Performance

Tablet Control

Set-up your cameras, calibrate and capture, anywhere in the volume

Performance

Thermal Sensors

Detects changes in camera temperature that could affect your system status

Performance

Connectivity

Power and sync with a PoE+

Offering the best resolution, speed and price on the market

Vicon Vero will transform the way you think about motion capture. With advanced technology, intelligent controls and intuitive design, it puts the power to capture in your hands.

Download Brochure

360 VIEW

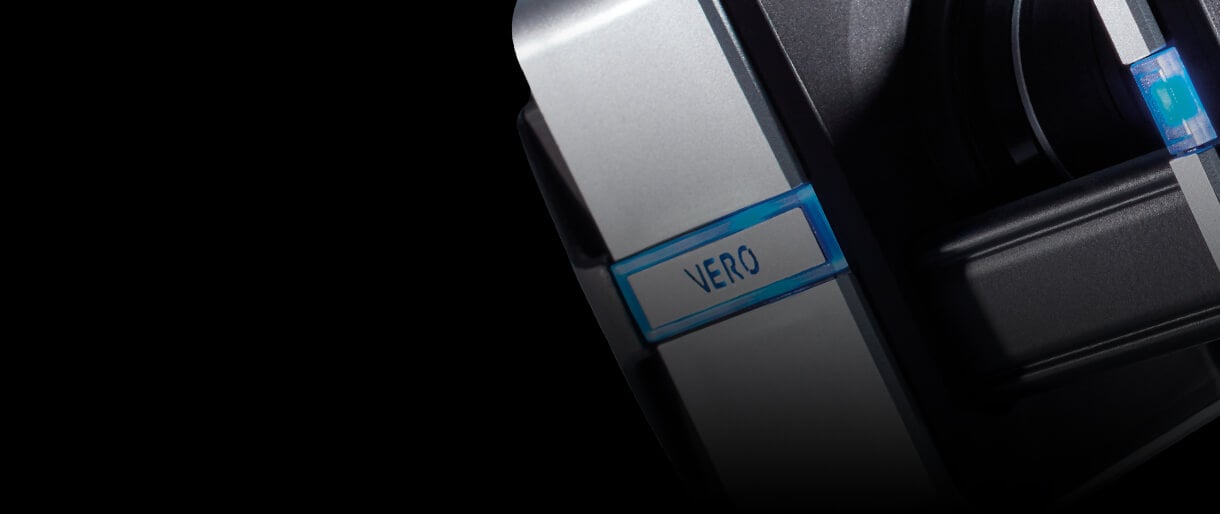

Key messages

  • Power

    With the best resolution/speed/price offering on the market, Vicon Vero is the latest optical camera from Vicon. Building on the success of Vantage, Vero combines market-leading resolution and speed at an unrivaled price point. Like its bigger brother, Vantage, Vero has on-board sensors that monitor camera position and temperature to ensure optimal performance at all times.

  • Flexibility

    Vero’s compact design means it is easy to mount, the custom made variable focus lens gives you an optimized field of view and its powerful strobe sees further.

  • Performance

    Vero’s performance belies its form factor. With an industry leading 2.2 MPX @ 330 FPS, Vero can capture sports movements or multiple actors with very low latency

  • Compatibility

    Are you an existing T-series, Bonita or Vantage customer looking to add more? Vero is compatible with all of these cameras and the Vicon Vue video camera.
    With cameras starting at $3,500 / £2,300, Vero could change your idea of motion capture.

  • Vero v1.3 X

    For all Vero customers who require a large volume in the tightest of spaces, typically tracking people in VR CAVEs. The Vero v1.3 X has a larger field of view than the other Vero cameras. Vero v1.3 X allows for people to be tracked from head to toe at distances less than the previous Vero camera.

Vertex - Mocap for small spaces

Driven by the challenging requirements from the major automotive OEMs, Vertex has been thoroughly tested and approved by their teams. It offers one of the smallest form factors for motion tracking on the market, coupled with the reliability that you expect from a Vicon product.

Like other current Vicon cameras, Vertex has onboard sensors that monitor camera position and temperature to ensure optimal performance at all times. These sensors, coupled with the accelerometer, help speed up setup, configuration and overall system monitoring.

Vertex has been designed specifically for use in small spaces, which makes it ideal for:

    • Ergonomics
    • Training
    • CAVEs
    • Powerwall applications
    • Immersive reality
    • Augmented reality
    • Simulation
    • Animal studies



TECHNICAL INFORMATION

SPECIFICATION

DOCUMENTATION

DOWNLOADS

FAQS

Compare Cameras

Vantage
Vero Family
Model V16 V8 V5 v2.2 v1.3 v1.3 X Vertex
Resolution (MP) 16 8 5 2.2 (2048 x 1088) 1.3 (1280 x 1024) 1.3 (1280 x 1024) 1.3 (1280 x 1024)
Max Frame Rate (Hz) 120 @ 16MP 260 @ 8MP 420 @ 5MP 330 @ 2.2MP 250 @ 1.3MP  250 @ 1.3MP 120 @ 1.3MP
Max Frame Rate (Hz) 2000 2000 2000 330 250 250
On-Board Marker Processing Yes Yes Yes
Standard Lens 18 mm 12.5 mm 12.5 mm 6-12 mm Varifocal
Wide Lens 12.5 mm 8.5 mm 6-12 mm Varifocal 4 mm Fixed Focal Length 4 mm Fixed Focal Length M12 Lens
Minimum Standard FOV (H x V)° 54.7 x 54.7 61.7 x 47 48.2 x 41.2 44.1 x 23.6 (tele) 27.2 x 21.8 (tele) 100.6 x 81.1
Minimum Wide FOV (H x V)° 76.4 x 76.4 63.5 x 55.1 98.1 x 50.1 (wide) 55.2 x 43.9 (wide) 79.0 x 67.6
Camera Latency 8.3 ms 5.5 ms 4.7 ms 3.6 ms 3.4 ms 3.4 ms 3.4 ms
Strobe IR
Shutter Type Global
Connection Type Cat5e / RJ45
Power PoE+ PoE
Max Power Consumption 24W 12W
Dimensions (mm) (H x W x D) 166.2 x 125 x 134.1 83 x 80 x 135 83 x 80 x 112 Body: 83 x 80 x 78 mm
Camera: 50 x 50 x 48 mm;
Weight (Kg) 1.6 0.57 0.56  0.57
Updateable Firmware Yes

Vero Software

Download File

Where can I find information about the Vero and Vue cameras?

The Vero Optical family of cameras combine the benefits of affordable motion capture with the reliability that comes with Vicon’s three decades of experience.

Details on the Vero Optical and Vue Video cameras can be found in the associated pages below


Vero Family


Vue

How do I update the Firmware on my Vantage/Vero and mixed hardware?

A mixed or Vantage/Vero camera system needs to be on the latest firmware.  For version details, see What is the latest version of Firmware?

1. Please download the folder and then extract the files from ReprogrammingTool_X.X.XXX.zip. Once complete, run the executable inside. This will install the Reprogramming Tool for the appropriate Firmware version on the computer.

2. Once the program has been installed make sure:

Vicon software is closed

Vicon hardware is on

To check your firewall; either disable or allow this program through the firewall

3. Double click on the Reprogramming Tool to start the program. The program will automatically search for all Vicon hardware which can be updated. Click Next when ready.

4. A list of existing Firmware for all devices is now presented. You have the option to reprogram all devices.

This process can be slow.  Please do not interrupt the programming process.  Once the reprogramming is completed you will be able to go to the next page and close out of the programming tool.  If any cameras fail or you have further questions, please contact support
