Motion Capture Calibration with the Vicon Active Wand

The main tool is a calibration wand, a rigid frame carrying markers of known geometry that is waved through the capture space so the cameras can calculate their positions and orientations relative to one another. Modern optical systems use an active wand fitted with bright LED markers, such as the Vicon Active Wand, which is easier for cameras to detect than passive reflective markers. The same wand is typically used to set the volume’s origin and ground plane, defining the coordinate system all captured data is measured against.

As a general rule, calibrate at the start of each capture session or working day, and re-calibrate whenever conditions change. Common triggers include a camera being knocked or moved, a noticeable shift in room temperature, or any drop in tracking quality during a session. Permanent, fixed installations tend to hold their calibration for longer, whereas portable rigs and shared or high-traffic spaces need calibrating more frequently.

A calibration wand is a handheld device with markers set at a fixed, known distance apart, used to map the capture volume during system setup. To use it, you wave the wand steadily throughout the space — covering as much of the volume as possible and passing through every camera’s field of view at a range of heights and angles — so the system can triangulate each camera’s exact position. You then set the origin by resting the wand at your chosen ground-plane point; the Vicon Active Wand includes a spirit level and manual level adjustment to make this step accurate and repeatable.

Yes. Calibration wands are matched to the camera technology they need to support. An IR-only wand, such as the standard Active Wand, calibrates infrared and video camera systems, while a hybrid wand carries both IR and near-infrared (NIR) markers so it can calibrate mixed setups that combine newer IR cameras with legacy NIR cameras. Wand size also matters: larger capture volumes benefit from an extended handle to keep marker coverage even across the whole space.

Accurate calibration comes down to full, even coverage and a clean environment. Wave the wand through the entire volume rather than just the center, varying your height and angle so every camera sees the markers from multiple perspectives, and make sure the wand’s LEDs are clean and fully charged before you start. Minimize reflective surfaces and stray infrared light in the space, set a stable and level origin, and check that the calibration residuals reported by your software are low before you begin capturing. If anything is moved or bumped afterward, recalibrate rather than risk carrying error into your data.

In most cases, yes. Calibrating before each session is best practice and the most reliable way to guarantee clean data. The main exception is a permanent, fixed installation where cameras have not moved since the last calibration; these can sometimes retain a valid calibration across sessions, though it’s still worth verifying tracking quality before you record. For portable systems, or any space where cameras are shared, relocated, or exposed to knocks, you should calibrate every time.

Calibration is the foundation of motion capture accuracy, so the quality of your calibration tool directly shapes the quality of your data. When the system knows precisely where each camera sits, it reconstructs 3D marker positions accurately; a poor calibration, by contrast, introduces spatial error into every frame you capture afterward. A high-quality wand with bright, consistently visible markers lets more cameras detect it at once and produces calibrations with lower residuals, which translates into more precise, more reliable tracking throughout the session.

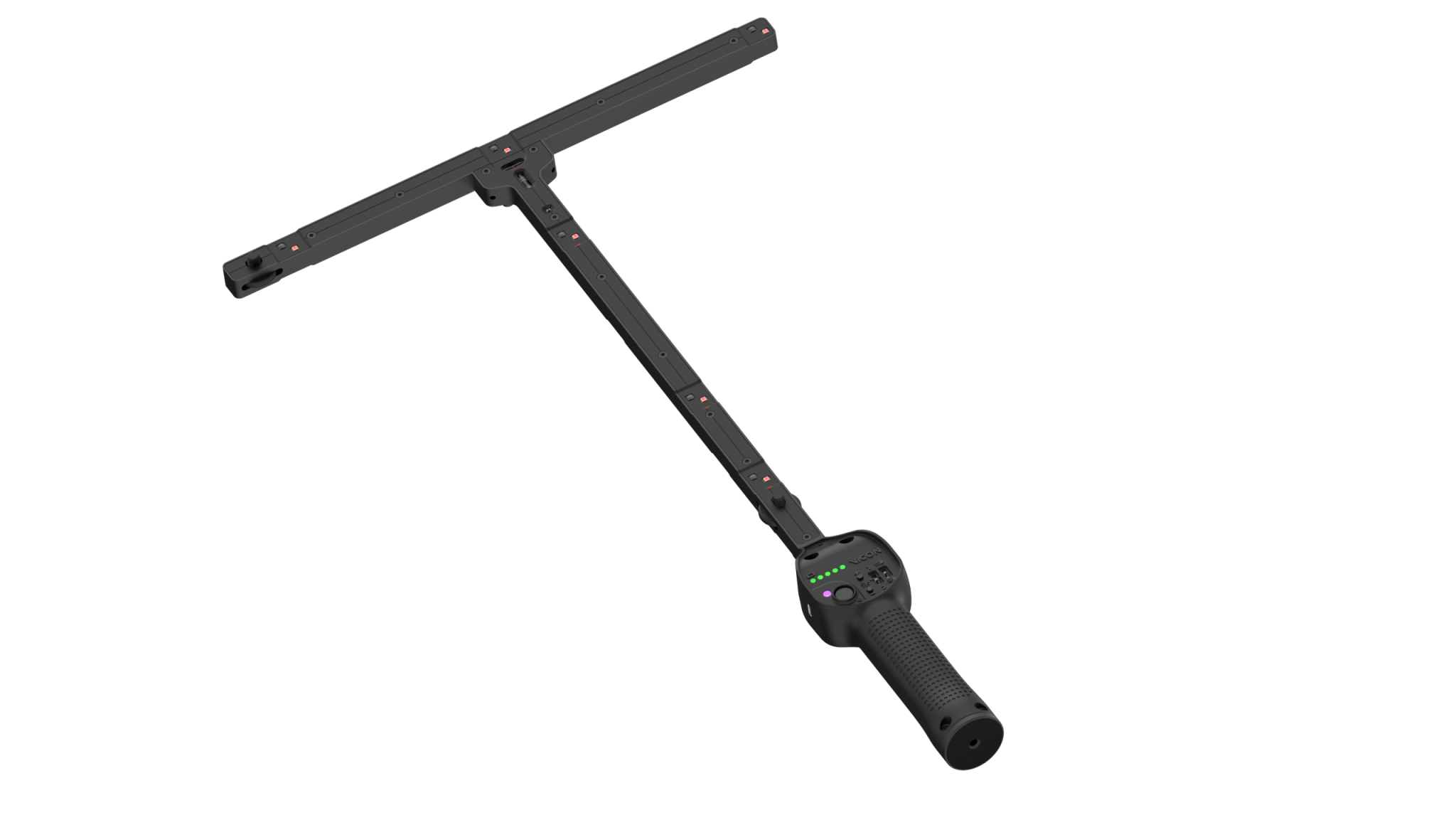

The Vicon Active Wand is a calibration tool used to align and configure motion capture systems. During setup, the wand is waved through the capture volume so its bright active LED markers can be detected by motion capture cameras. This allows the Vicon system to calculate accurate camera positions, orientations, and tracking geometry — a critical first step before recording motion data.

The Active Wand improves motion capture calibration by making the process easier and more reliable. Its active LED markers are brighter and more visible than passive markers, allowing more cameras to detect them at once. This speeds up calibration, reduces the number of passes needed, and supports consistent, high-quality calibration even in larger or more complex capture volumes.

The Active Wand is compatible with a wide range of Vicon hardware. It works with Vicon optical motion capture cameras — including models such as Valkyrie, Vero, Vantage, and supported video cameras — enabling accurate calibration across many capture setups. This broad compatibility helps teams calibrate their systems efficiently regardless of scale or application.

The key difference between the Active Wand and the Active Wand Hybrid is the type of cameras each supports:

• Active Wand: Designed for calibration with Vicon’s infrared (IR) and video camera systems that use IR markers.
• Active Wand Hybrid: Includes both infrared (IR) and near-infrared (NIR) LED markers, enabling it to calibrate mixed camera systems that combine legacy NIR cameras with newer IR cameras.

The Hybrid wand is ideal for facilities that maintain older cameras alongside newer Vicon hardware, allowing one tool to serve both calibration needs.
